About This Kit

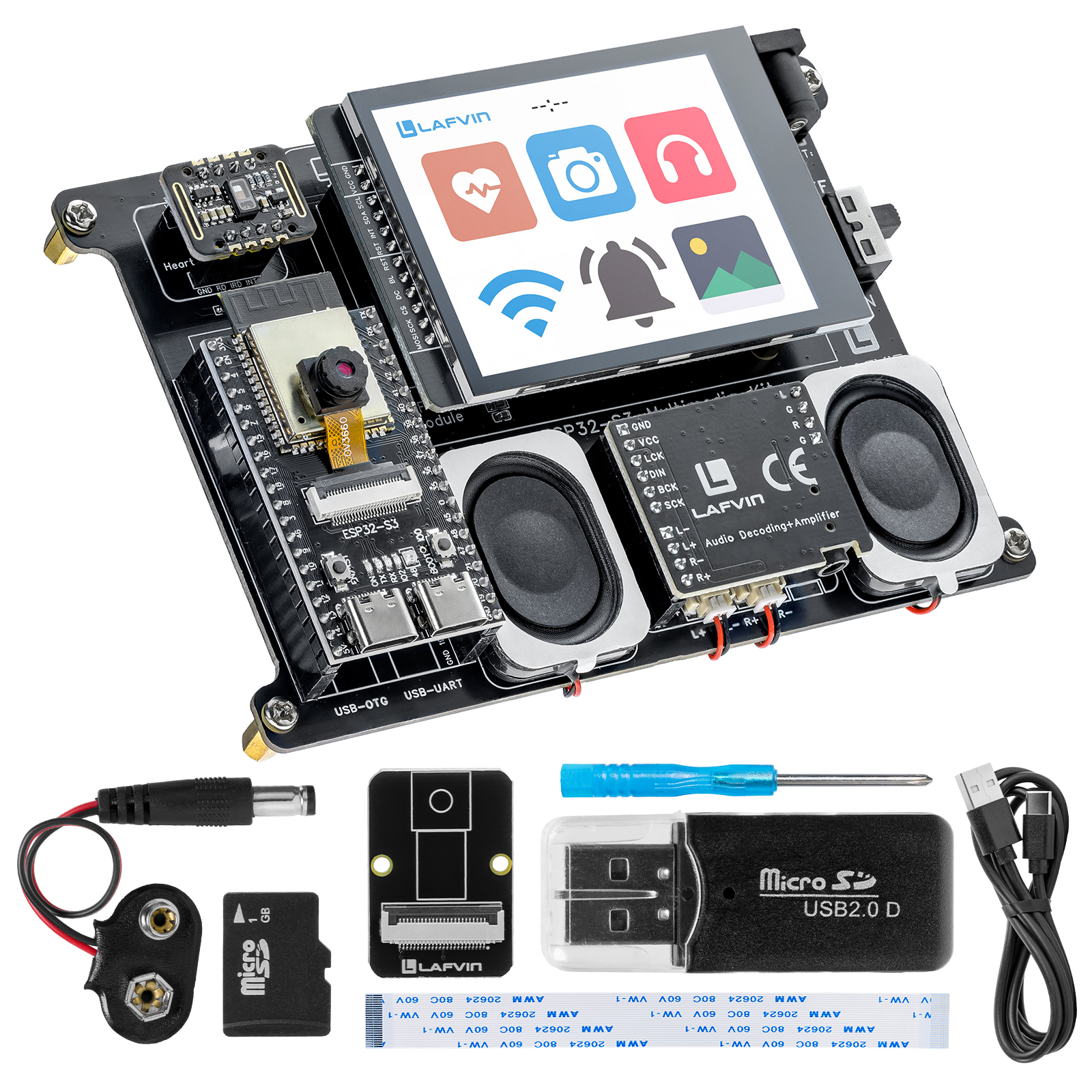

LAFVIN ESP32-S3 Multimedia Kit

The LAFVIN ESP32-S3 Multimedia Kit is a comprehensive development platform built around the ESP32-S3 microcontroller, designed for learning embedded systems, IoT, and graphical user interface (GUI) development.

Introduction

This multimedia kit is powered by the ESP32-S3 chip, which features a dual-core Xtensa LX7 processor running at up to 240 MHz, with built-in Wi-Fi, Bluetooth 5 (LE), and native USB OTG support. The board integrates a rich set of peripherals, making it an ideal platform for learning and prototyping multimedia applications.

With step-by-step tutorials covering both Arduino fundamentals and advanced LVGL GUI development, this kit takes you from basic GPIO control all the way to building a fully integrated touchscreen application with camera, music player, and more.

Note

This kit is shipped pre-flashed and tested. If you want to restore or reflash the factory-style LVGL All-In-One demo from your browser, see Online Flasher.

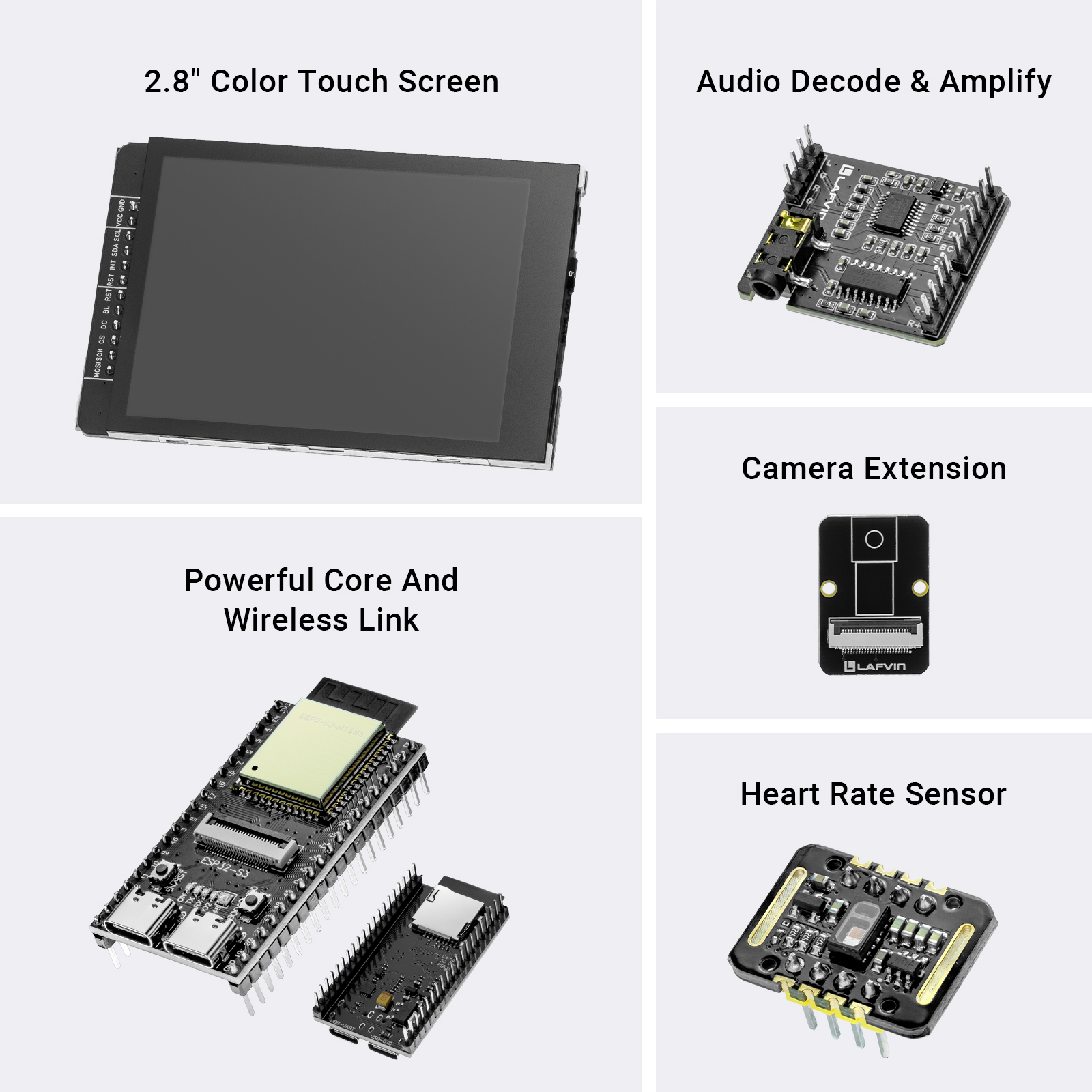

Key Features

Core Controller: ESP32-S3, dual-core 240MHz, with Wi-Fi & BLE 5
Display: 2.8-inch TFT LCD, 320x240 resolution, SPI interface
Touch Panel: FT6336U capacitive touch controller, I2C interface
Camera: OV3660 camera module
Audio: LAFVIN Audio Decoder Amplifier Module with speaker
Storage: Micro SD card slot (SDMMC 1-bit mode)
Sensors: - MAX30102 heart rate & pulse oximeter sensor - ADC for battery voltage monitoring
Actuators: - WS2812 RGB LED - Passive buzzer
Interfaces: - USB Type-C for power and programming - CH343 USB-to-UART bridge

Learning Resources

24 Step-by-Step Tutorials: 9 Arduino fundamentals + 15 LVGL GUI projects
Complete Source Code: Ready-to-compile Arduino sketches for every lesson
From Zero to All-In-One: Progressive learning path culminating in a full-featured multimedia application

Application Scenarios

Education: Learn embedded programming, IoT connectivity, sensors, and GUI design
Prototyping: Rapidly develop proof-of-concept multimedia and IoT devices
Hobby Projects: Build smart displays, music players, health monitors, and more

Bill of Materials

Component	Quantity
ESP32-S3 Main Board	1
ESP32-S3 Power Supply Base Board	1
2.8-inch TFT LCD with Touch Panel	1
OV3660 Camera	1
OV3660 Lens Extension Board Module	1
FPC Camera Extension Cable	1
LAFVIN Audio Decoder Amplifier Module	1
8Ω 2W Cavity Speaker	2
MAX30102 Heart Rate Sensor	1
Micro SD Card (1GB)	1
MicroUSB 2.0 Card Reader	1
USB Type-C Cable	1
Square Battery Cable	1
Phillips Screwdriver	1
Screw Kit	1
